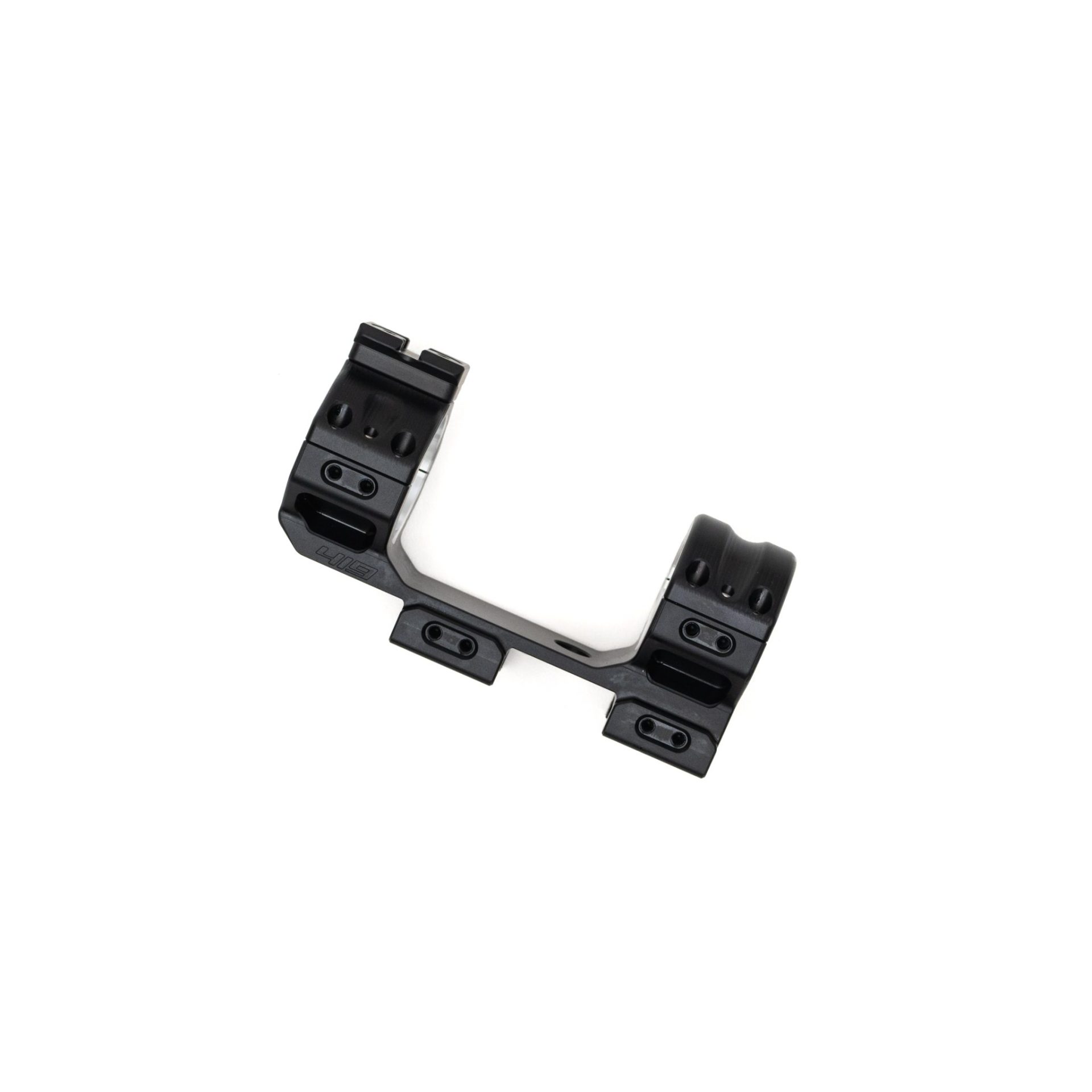

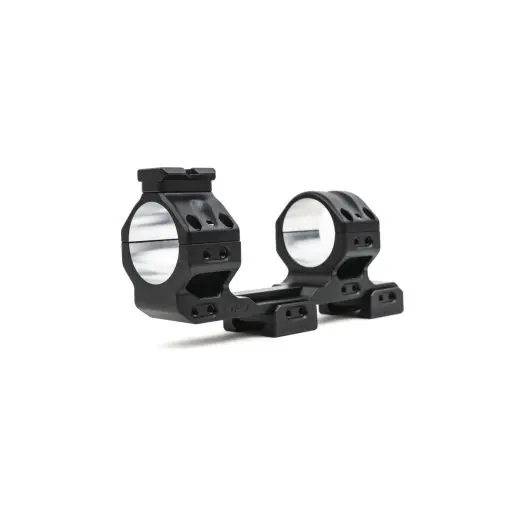

NOTE: All 1.34โณ (34mm) height mounts are a mid-cantilever, meant for less offset and use on bolt-action platforms. All 1.54โณ (39mm) height mounts are a more traditional AR-style cantilever. Please select the option you would like to order to see the specific mount or look at the below diagrams.ย
When we set out to make the perfect scope mount, we knew what we needed to make something that was reliable and consistent at a degree you wonโt find anywhere else on the market. This led us down a rabbit-hole, ultimately arriving on a process that gets you final-bore matched rings, with raw aluminum internals, for a grip on your optic that is more reliable and more true than anything else made โ as well as an incredible amount of robustness without adding unnecessary weight.
Like most mounts, these begin as separate parts. We are making the bases and caps in batches. While many will make these parts, send them to anodize, and then just assemble, we produce around the extra steps. Once these parts return from anodize, they are fully assembled, placed back into specially produced rail fixtures, with the caps torqued to spec over specially made spacers (to give the rings space to torque down on the optic), and final-bored as sets in our world-class machining centers. Mounts are then brought off the machine in sets, QCโd and packaged, ensuring that you receive a mount that was finished perfectly.
Is it overkill? Probably. But we think itโs the right way. So thatโs what we are going to do.
KEY FEATURES
- CNC Milled in America from American 7075 Aluminum
- Raw aluminum, precision bored scope contact surfaces for maximum grip
- Final-bored in sets, and never fully disassembled after boring
- 8-9oz per mount, depending on model, balancing weight management and robustness
- Multiple accessory mounting points
- Separate rail clamping bars for maximum grab on the pic rail
- Inset clamping feet, allowing for maximum mounting adjustment and pic rail utility
- Steel guide pins between base and caps, aiding in alignment
- Custom nitrided stainless hardware
- Patent-Pending ultra-rigid and repeatable top accessory attachment
